Products

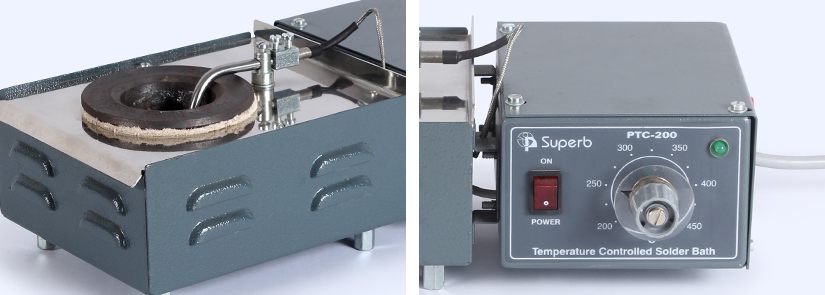

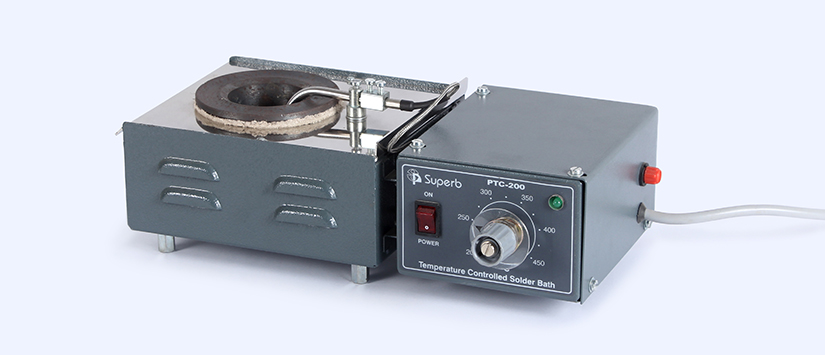

Solder Bath SBPTC-200
In Electronics, Electrical and Automobile industry you come across where you have to carry out tinning operation. It may be component such as resistor, capacitor or stripped wire where lead-out ends are to be tinned or it may be stripped wire ends to be soldered ot it may be wire ends of wiring harness, crimped lugs to be tinned. One can think of various applications. We have developed various Solder pots depending on customer requirements.
This is temperature controlled solder pot. Temperature can be set by setting of pointer to required temperature.
| Model | Pot Dimensions in mm | Pot Shape | Wattage | Solder Capacity | Temp. Range |
|---|---|---|---|---|---|
| SBPTC-200 with Analog Controller | 50 X 40 deep | Round | 400 W | 0.7 Kg | 200 Deg. Cel to 450 deg Cel. |
SB 200
This is a fixed temperature Solder Bath.
Temperature will be maintained
at Approx. 325 ºC
Pot Shape : Round,
Pot Dimensions in mm : 50 X 40 deep,
Wattage : 200 W,
Solder Capacity : 0.7 Kg,
Temp. Range : Fixed Approx. 325° C,
Applications :
- Component Lead Tinning.
- Tinning of stripped PVC wires.
- Soldering of Self-solderable wires.
- Wiring harness ends in automobile industry.
- All these pots can be used with lead free solder also.
Note :
- PTC Models are temperature controlled.
- Temperature controlled within ± 5°C of set temperature.
